AV-OLT-XG04 GPON OLT / 4 PON GPON OLT

AV-OLT-XE04 EPON OLT / 4 PON EPON OLT 10G OLT

Overview:

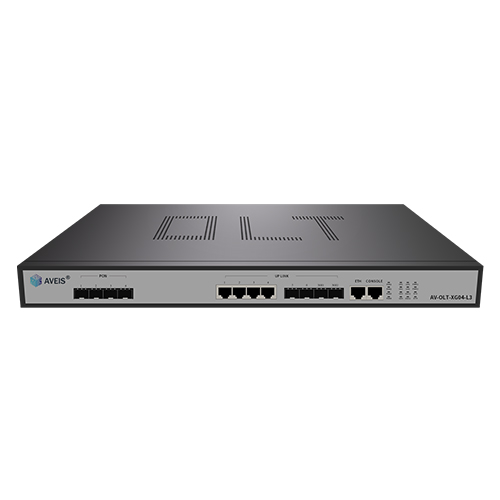

AV-OLT-XG04 GPON OLT / 4 PON GPON OLT

AV-OLT-XG04 GPON OLT / 4 PON GPON OLT optical line terminal / optical line termination is a high integrated, medium capacity box GPON OLT / 4 PON GPON OLT optical line terminal / optical line termination switching equipment developed for the operator access and enterprise park network. The OLT device EPON OLT / 4 PON GPON OLT optical line terminal / optical line terminal follows IEEE802.3ah technical standard and meets the requirements of GPON OLT / OLT fiber equipment in “YD/T 1475-2006 access network technical requirements” in FTTH solutions. The OLT device GPON OLT / 4 PON GPON OLT optical line terminal / optical line terminal has good openness, large capacity, high reliability and complete software functions. AVEIS OLT company provide OLT device GPON OLT / 4 PON GPON OLT optical line terminal / optical line terminal Suitable for telecommunications company and telecommunications provider, can meet the FTTH solutions and FTTX solution of the application. AVEIS OLT company provide OLT device GPON OLT / 4 PON GPON OLT / 8 port OLT / EPON OLT / FTTH OLT / GEPON OLT/ optical line terminal, ONU device optical network unit and optical network terminal : XPON ONU, GPON ONU, EPON ONU, WIFI ONU, FTTH ONU, CATV ONU, GE ONU, VOIP ONU,ONT, GPON ONT, FIBER ONT, FTTH ONT, XPON ONT, WIFI ONT, EPON ONT, SFP MODULE, GPON SFP, EPON SFP, Single mode SFP, multi mode SFP , 10g SFP, electronic components, networking devices, telecom products, fiber optic equipment to not only China mobile, China telecom, China unicom but also telecommunications company, cable company for telecommunications, computer network, fiberhome, fiber optic communications, optical fiber network, Passive optical network, FTTH and FTTX. AVEIS OLT company OLT device GPON OLT / 4 PON GPON OLT / 8 port OLT / GPON OLT / FTTH OLT / GEPON OLT/ optical line terminal also compatible with Huawei, Nokia, ZTE EPON ONU, GPON ONU and TP-Link, Tenda router. AVEIS OLT company also provide OEM service for OLT device GPON OLT / 4 PON GPON OLT / 8 port OLT / EPON OLT / FTTH OLT / GEPON OLT/ optical line terminal, EPON ONU, GPON ONU, XPON ONU, GE ONU, WIFI ONU, FTTH ONU, CATV ONU, GE ONU, VOIP ONU, ONT, GPON ONT, FIBER ONT, FTTH ONT, XPON ONT, WIFI ONT, EPON ONT, SFP MODULE, GPON SFP, EPON SFP, Single mode SFP, multi mode SFP, 10g SFP, electronic components, networking devices, telecom products, fiber optic equipment.



Cortina chipset: Cortina 8022 chipset. For OLT price of OLT device GPON OLT / 4 PON GPON OLT / 8 port OLT / EPON OLT / FTTH OLT / GEPON OLT/ optical line terminal, please feel free contact AVEIS OLT company and AVEIS OLT company also manufacturer of  XPON ONU, GPON ONU, EPON ONU, WIFI ONU, FTTH ONU, CATV ONU, GE ONU, VOIP ONU,ONT, GPON ONT, FIBER ONT, FTTH ONT, XPON ONT, WIFI ONT, EPON ONT, SFP MODULE, GPON SFP, EPON SFP, Single mode SFP, multi mode SFP , 10g SFP, electronic components, networking devices, telecom products, fiber optic equipment: switch, cable, splitter, patch cord, OTDR, fusion splicer, optical power meter, fiber cleavers and fiber stripper. We also welcome video surveillance industry, communications industry, High-tech Enterprise, Project Consultancy be telecommunications supplier as Aveis OLT company OLT device GPON OLT / 4 PON GPON OLT / 8 port OLT / EPON OLT / FTTH OLT / GEPON OLT/ optical line terminal, XPON ONU, GPON ONU, EPON ONU, WIFI ONU, FTTH ONU, CATV ONU, GE ONU, VOIP ONU,ONT, GPON ONT, FIBER ONT, FTTH ONT, XPON ONT, WIFI ONT, EPON ONT, SFP MODULE, GPON SFP, EPON SFP, Single mode SFP, multi mode SFP , 10g SFP, electronic components, networking devices, telecom products, fiber optic equipment: switch, cable, splitter, patch cord, OTDR, fusion splicer, optical power meter, fiber cleavers and fiber stripper partner all over the world.

Features:

  • 4 PON GPON OLT / GPON OLT / 10G OLT
  • Layer 3 function
  • Dual power
  • 8 * GE LAN foruplink
  • 4 *10G SFP+ foruplink
  • Each PON supports up to 64 terminals, the whole device supports up to 256 ONUs underfull configuration
  • Management Ports: Console/NMS port
  • Management: CLI, WEB, SNMP/NMS
  • Power input: AC:100V~240V 47/63Hz
  • Aggregation layer switch. Layer wire-speed forwarding, support for rich layer protocol
  • 16K MAC address table.
  • 8 uplink ports, port aggregation through the largest available 8G uplink bandwidth
  • Complete network management functions
  • Support flexible DBA, up and down traffic speed
  • Support IP ToS, IEEE802.1Q
  • Port-based traffic control, traffic shaping
  • Support ONU automatic identification, auto-discovery, and auto-registration
  • Single link to support the automatic loop-back test function
  • VLAN powerful features, including VLAN Stacking, Trunk, Translation
  • Flexible and controllable multicast support, support IGMP snooping
  • Support ACL /QoS

Specification:



Parameters



AVEIS AV-OLT-XG04 GPON OLT / 4 PON GPON OLT



DDR

512M

FLASH

32M

Size (L*W*H)

Product size:442mm×260mm×44mm

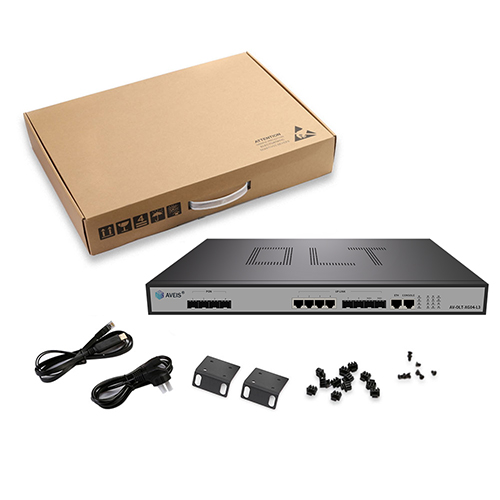

Package size:520mm×372mm×87mm

Weight

<5kg

Uplink

QTY

8

Copper

4*10/100/1000Mauto-negotiable, RJ45

QTY

4

Interface

4 SFP module slots

Connector Type

1000BASE-PX20+/PX20++/PX20+++

Max splitting ratio

1:64

Management Ports

CONSOLE port/NMS PORT

Power Input

AC: 100V~240V AC 47/63Hz

Support standard

IEEE 802.3ah EPON

IEEE802.3(10Base-T)

IEEE802.3u(100Base-TX)

IEEE802.3z(1000BASE-X)

IEEE802.3ab(1000Base-T)

IEEE802.1Q(VLAN)

IEEEE802.1d(STP)

IEEEE802.1W(RSTP)

IEEE802.1p(COS)

IEEE802.1x(Port Control)

IEEE802.3x(flow-control)

Each OLT interface supports at most 64 ONU

Transmission distance of each OLT is at most 20Km

PON function

Support auto register and confirm

Blacklist and whitelist ONU

DBA configure

P2P

ONU authorization

Layer 2/3 function

VLAN, QinQ, translation

Support at most 4094 VLAN; performance statistic

16K MAC address; mac address management

Port mirror

Support RSTP

Storm control

Support IGMP Snooping/proxy

Support 4k router hosts

Support 64 router subnets

Port isolation

ACL access control based on data stream

QoS based on port, VID, TOS and MAC address;

Encryption of PON port transmitting data











Configuration and Management





CLI, WEB, SNMP/NMS

Software and bootrom upgrade by TFTP and FTP

Local server syslog to record system log

Chinese/English command prompt

Ping

Debug/Log management

User management;

Log management

Alarm management.

Temperature

-10℃~60℃

Humidity

5%~95%

Technician support:

  • QC every items ONU, OLT, SFP by original brand device
  • ONU, OLT, SFP 2 years warranty for replacement
  • Fast online response and service all the time for ONU, OLT, SFP
  • Training course for ONU, OLT, SFP
  • Troubleshooting guidance for ONU, OLT, SFP

For partners:

  • ONU, OLT, SFP free sample test
  • ONU, OLT, SFP agent price support
  • ONU, OLT, SFP delivery time support
  • ONU, OLT, SFP after sale service SOP and video support
  • Be your ONU, OLT, SFP warehouse and factory inspection support
  • ONU, OLT, SFP inquiry from your country
  • ONU, OLT, SFP brand marketing support
  • ONU, OLT, SFP OEM service support
  • ONU, OLT, SFP SNS marketing support

Let’s talk



Contact us

Price list and catalogu

Live chat

ONU & SFP & OLT support

Get sample

Get samples testing

Aveis agent

Be Aveis agent get for support

Ordering code:

AV

AVEIS BRAND

E, G

E- EPON   G- GPON

04, 08, 16

04- 4 ports     08- 8 ports   16- 16 ports

E

1.25G EPON OLT

XE

10G EPON OLT

L2

Layer 2

L3

Layer 3

Example of Ordering code:



AV-OLT-E04-L3 EPON OLT 1.25G OLT 4 PON EPON OLT Layer 3 duel power OLT

AV-OLT-E08-L3 EPON OLT 1.25G OLT 8 ports OLT Layer 3 duel power OLT

AV-OLT-XE04-L3 EPON OLT 10G OLT 4 PON EPON OLT Layer 3 duel power OLT

AV-OLT-XE08-L3 EPON OLT 10G OLT 8 ports OLT Layer 3 duel power OLT

AV-OLT-XG04-L3 GPON OLT 10G OLT 4 ports OLT Layer 3 duel power OLT

AV-OLT-XG08-L3 GPON OLT 10G OLT 8 ports OLT Layer 3 duel power OLT

AV-OLT-XG16-L3 GPON OLT 10G OLT 16 ports OLT Layer 3 duel power OLT
